Вимикач маси 705222

У дорозі
Характеристики запчастин
Артикул 705222
Оригінальність Manitou OEM
Розміри (ДхШхВ) Length: 0.208 m Width: 0.07 m Height: 0.07 m
Вага 0.552 Kg
Всі характеристики
  • 2 181.81 грн ціна з ПДВ

Дізнатись наявність

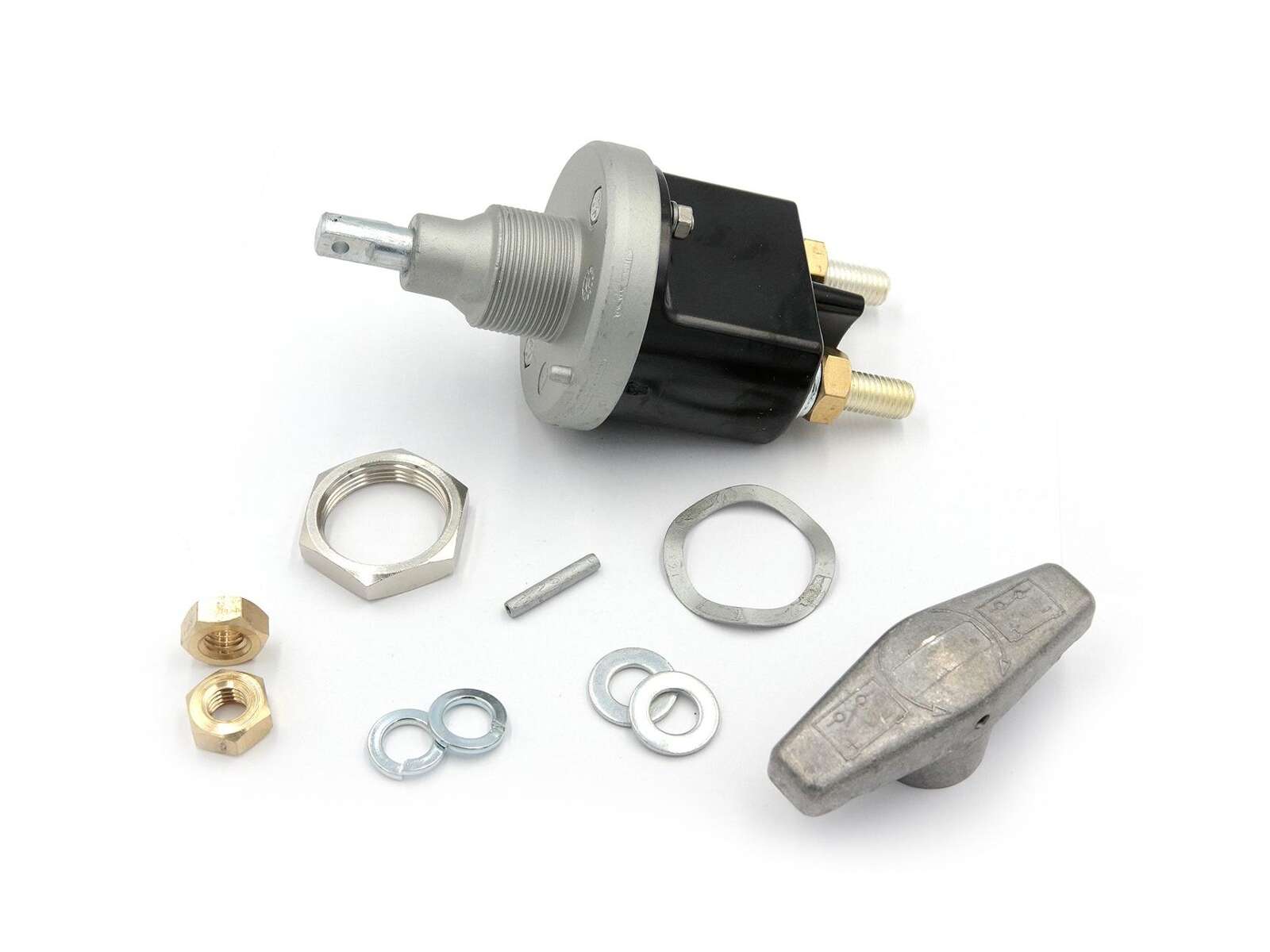

Вимикач маси електроживлення
Manitou part number: 705222

Type of the connection
stud
Position of the connection
straight
Current (A)
250
Quantity of poles on the battery disconnect switch
1
Auxiliary switch present
NO
Type of the actuator
fixed handle
Nominal diameter of the connection D1 (mm)
10
Thread size connection
M10
Pitch (metric) (mm)
1.25
Top built-in diameter of the battery disconnect switch D2 (mm)
30
Length thread panelmount L2 (mm)
19
Bottom built-in height of the battery disconnect switch H1 (mm)
88.5
Bottom built-in diameter of the battery disconnect switch D3 (mm)
63
Total height of the battery disconnect switch H2 (mm)
150
Total diameter of the battery disconnect switch D4 (mm)
68
Material of the housing
metal-plastic
Material of the actuator
metal
