Кільце стопорне 562514

В наявності
Характеристики запчастин
Артикул 562514
Оригінальність Manitou OEM
Розміри (ДхШхВ) Length: 0.3 m Width: 0.2 m Height: 0.003 m
Вага 0.075 Kg
Всі характеристики
  • 294.28 грн ціна з ПДВ

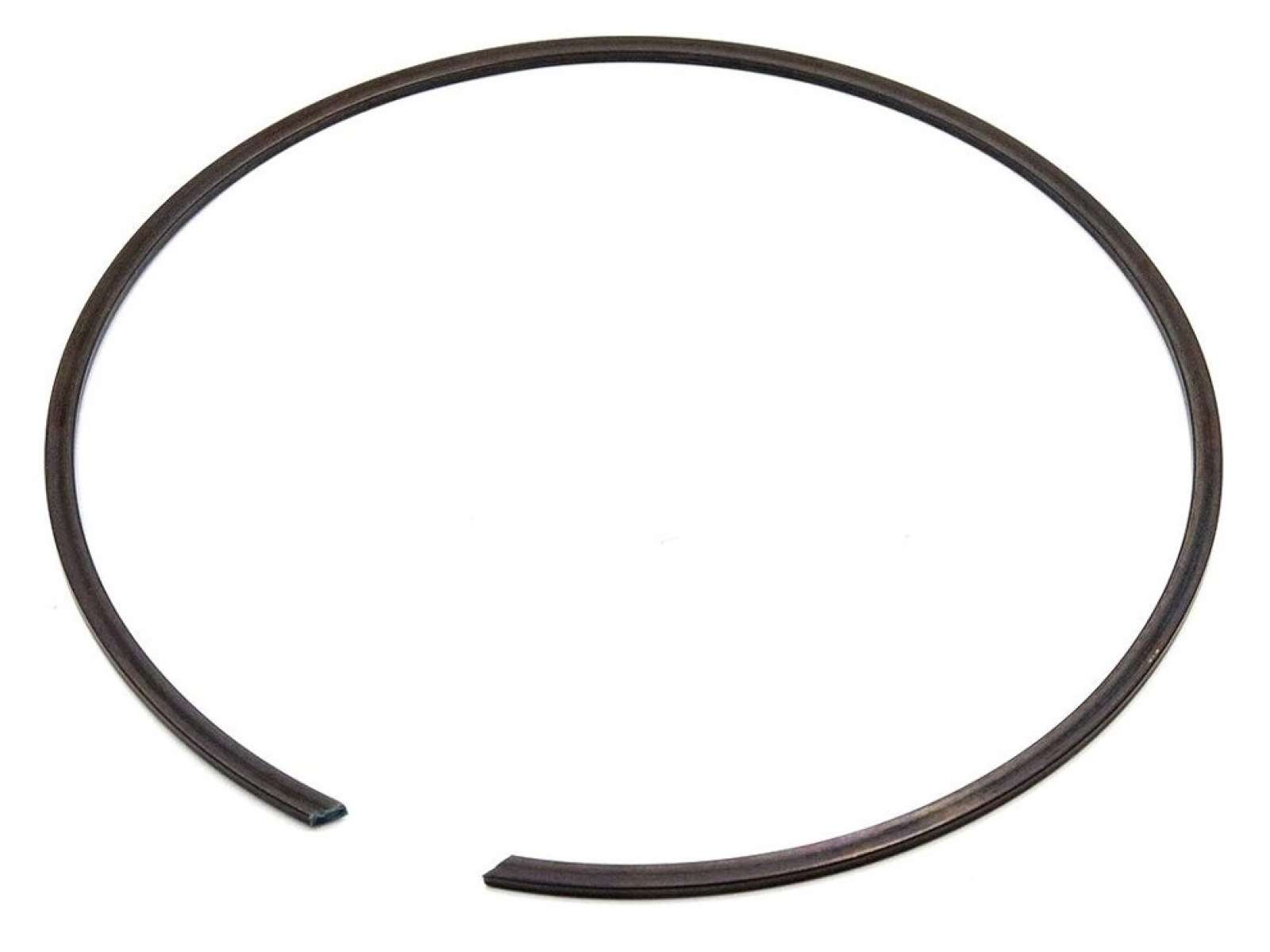

Кільце стопорне вінця сателітів
Manitou part number: 562514

Type of the retaining ring
constant section

Cross section of the constant section retaining ring
rectangular (standing)

Shape of the constant section retaining ring
circular

Type of end 1 of the constant section retaining ring
001

Type of end 2 of the constant section retaining ring
002

Type of assembly of the retaining ring
internal

Internal diameter of the ring in the unstressed state D1 (mm)
187

External diameter of the ring in the unstressed state D2 (mm)
196

Thickness of the ring TH1 (mm)
3

Free gap L1 (mm)
34

Maximum radial section width W2 (mm)
5

Minimum housing diameter D4 (mm)
190

Maximum housing diameter D4 (mm)
190

Groove diameter D5 (mm)
193

Material
steel

Metric/Inch
metric
