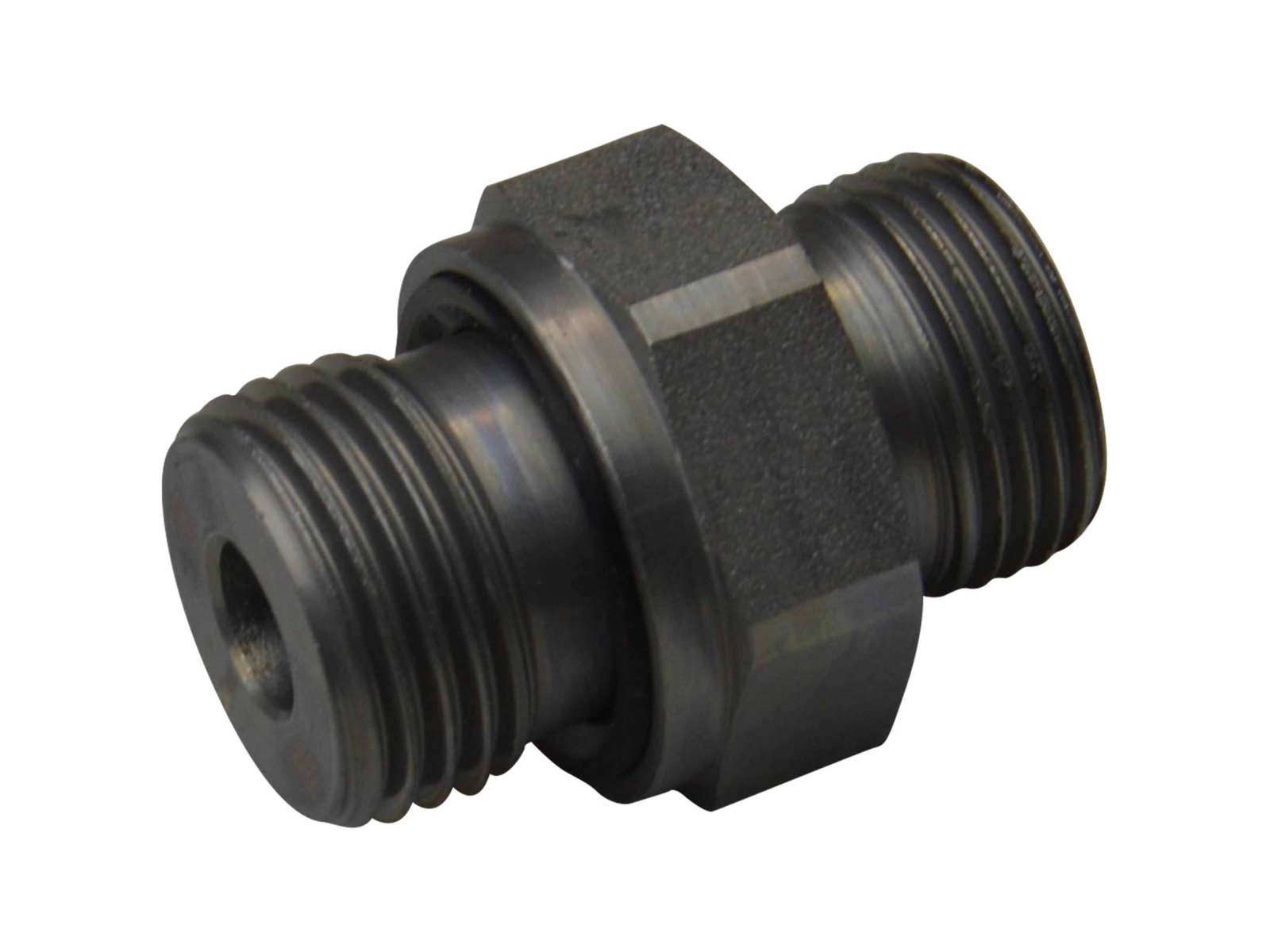

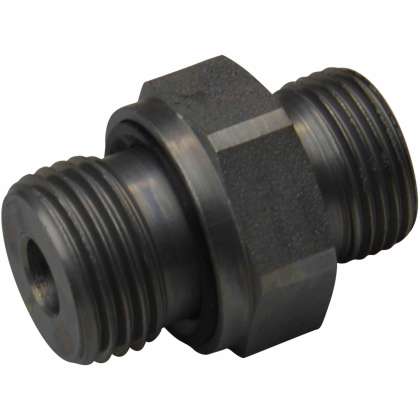

Fitting 190887

  • Fitting 190887
In Stock
Characteristics of spare parts
Article 190887
Originality Manitou OEM
Dimensions (LxWxH) Length: 0.08 M Width: 0.06 M Height: 0.027 M
Weight 0.099 Kg
All characteristics
Check with the manager

Fitting for hydraulic circuit

Manitou part number: 190887

Type
straight
Number of connections
2
Type of connection
outer thread
Biggest internal diameter D1 (mm)
12.2
Number of connection 1
1
Diameter connection 1 D2 (mm)
20.95
Thread size connection 1
1/2
Type of thread connection 1
BSP
Pitch inch connection 1
14
Right or left handed thread connection 1
right-handed
Type of sealing connection 1, with thread only
without
Number of connection 2
1
Diameter connection 2 D3 (mm)
20
Thread size connection 2
M20
Pitch metric connection 2 (mm)
1.5
Right or left handed thread connection 2
right-handed
Type of sealing of connection 2, with thread only
internal cone
Total length L1 (mm)
39
Total height H1 (mm)
27
Biggest external diameter D4 (mm)
27
Bracket present
NO
Nut present
NO
Tube sleeve present
NO
Rotating
NO
Filter present
NO
Material
steel
