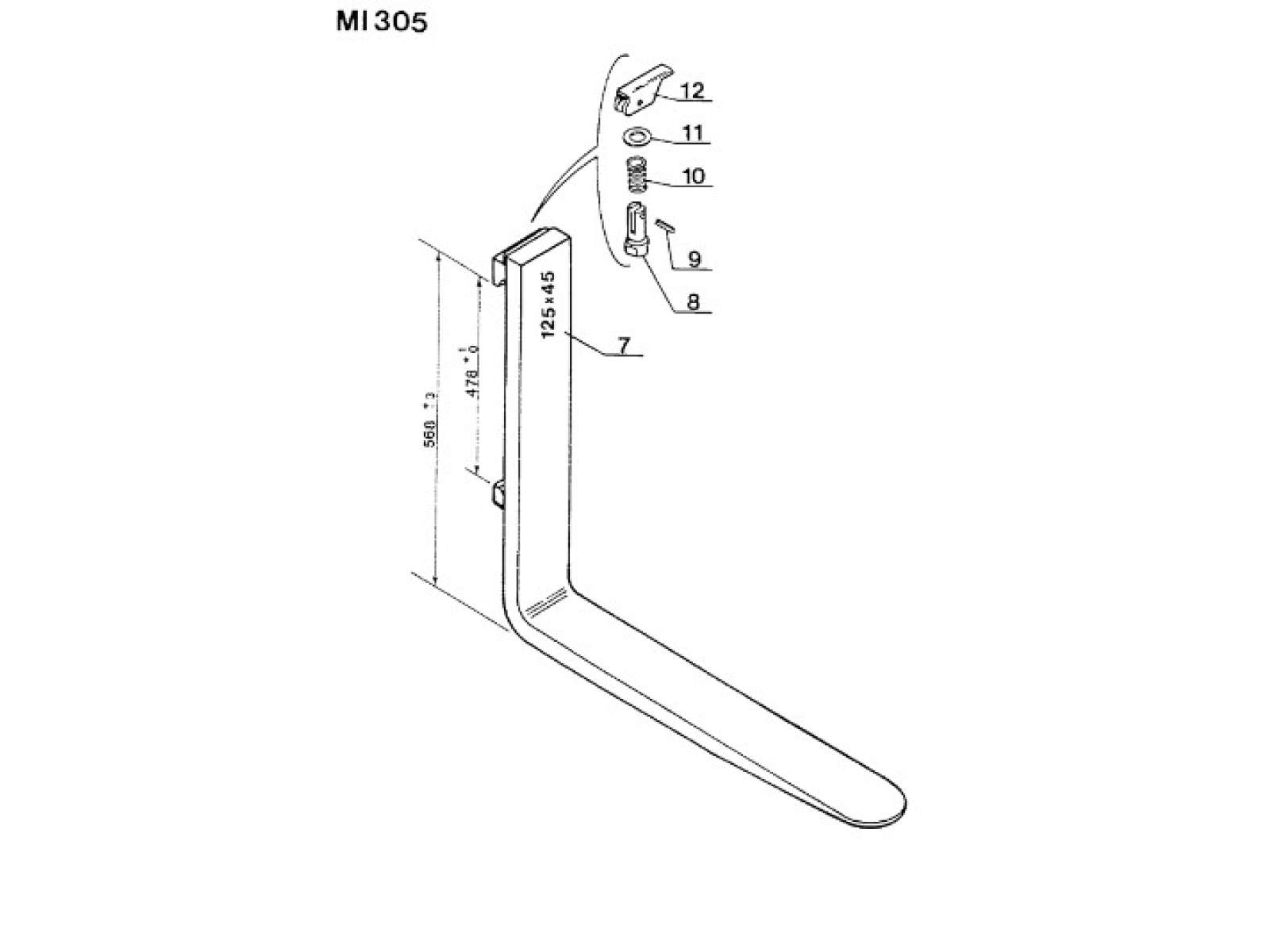

Pallet fork 415618

  • Pallet fork 415618
Arrives
Characteristics of spare parts
Article 415618
Originality Manitou OEM
Dimensions (LxWxH) Length: 1.285 M Width: 0.125 M Height: 0.668 M
Weight 142 Kg
All characteristics
Check with the manager

Вила палетні
Manitou part number: 415618

Fork type TY-FORK
FEM-type fork
Mounting class (ISO 2328) MOU
FEM3
Type of mounting class
A
Carriage height H4 (mm)
508
Usable length of the fork L1 (mm)
1200
Width of fork W1 (mm)
125
Thickness fork TH1 (mm)
45
ISO
2328
Distance between inside bottom hook and bottom of the fork (ground clearance) H6 (mm)
76
Total back height from bottom to top of the fork back H1 (mm)
650
Capacity/pair on load centre Q (kg)
4100
Load centre LC (mm)
500
Smallest distance between the two hooks (measures hook tip to tip) H5 (mm)
477
Material
33MnCrTiB
Fork weight G (kg)
73
