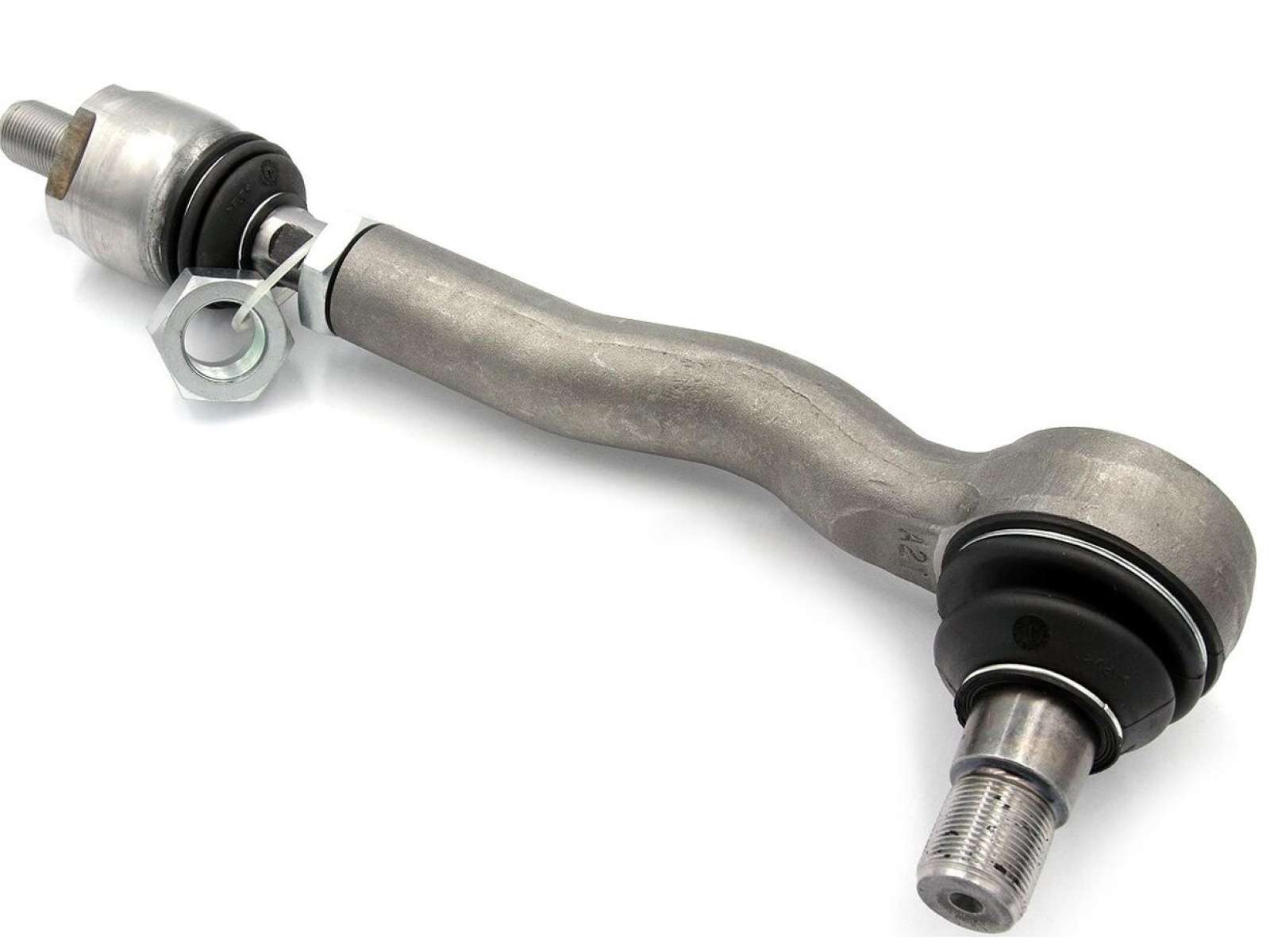

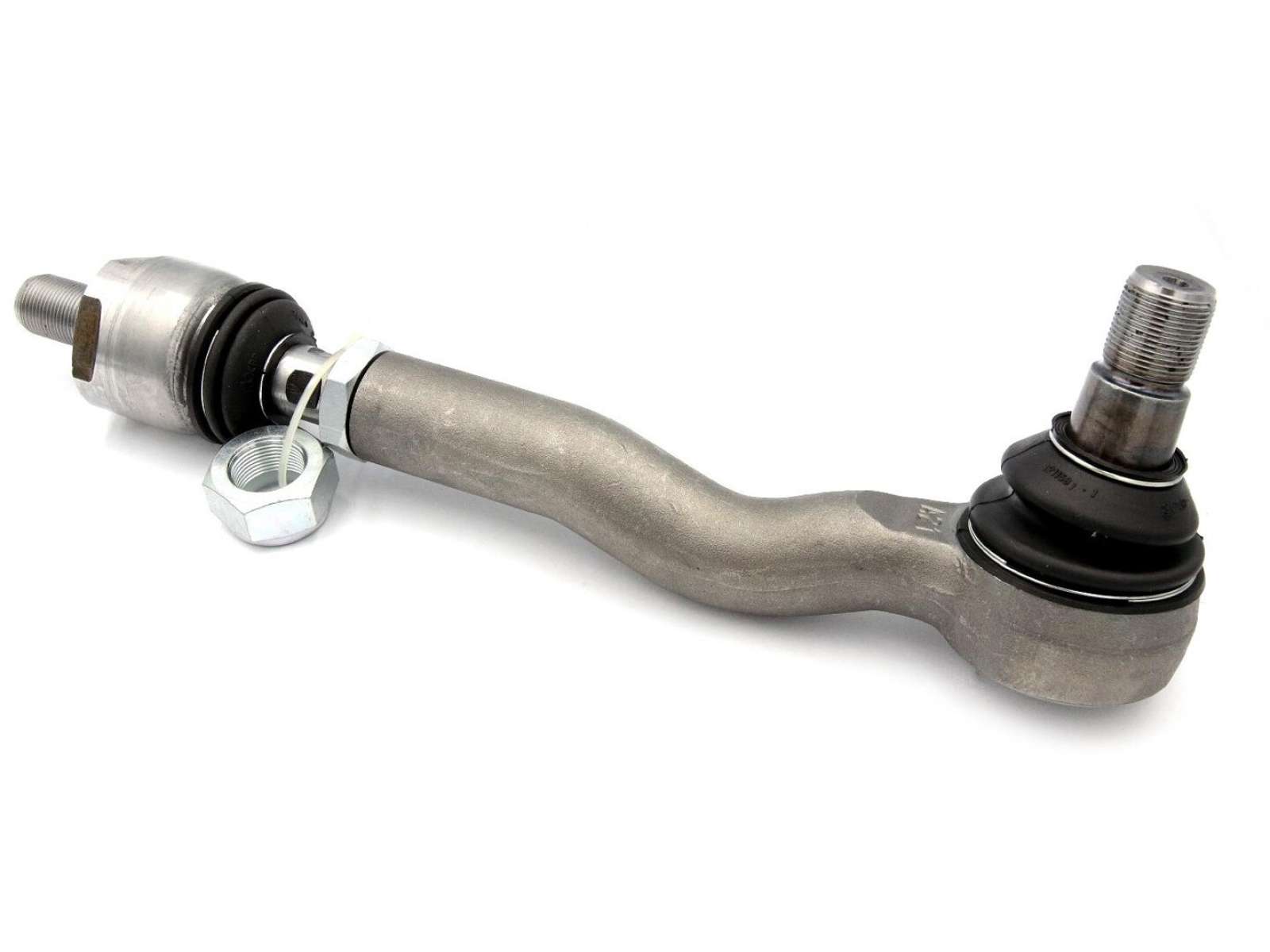

Steering rod 52731062

In Stock
Characteristics of spare parts
Article 52731062
Originality Manitou OEM
Dimensions (LxWxH) Length: 0.434 M Width: 0.13 M Height: 0.096 M
Weight 4.366 Kg
All characteristics

Tie rod

Manitou part number: 52731062

Type of ball joint TY-RO
tie-rod end with axial end

Thread type TA1
M24

Pitch (metric) Pm1 (mm)
1.5

Right-handed or left-handed thread RH/LH1
right-handed

Length ball joint L1 (mm)
375

Taper diameter D1 (mm)
27

Height of the tie-rod H1 (mm)
118

Thread type TA2
M24

Pitch (metric) Pm2 (mm)
1.5

Right-handed or left-handed thread RH/LH2
right-handed

Length of thread L2 (mm)
28

Connection height H2 (mm)
95

Thread type TA3
M22

Pitch (metric) thread Pm3 (mm)
1.5

Right-handed or left-handed thread RH/LH3
right-handed

Ball joint present KO-TA
Yes

Wrench Opening (width across flats) SLW (mm)
50

Grease Nipple SMP
NO
