Tie rod end 53202101 | 53202102

  • Tie rod end 53202101 | 53202102
In Stock
Characteristics of spare parts
Article 53202101
Originality Manitou OEM
Dimensions (LxWxH) Length: 0.32 M Width: 0.14 M Height: 0.13 M
Weight 2.96 Kg
All characteristics
Check with the manager

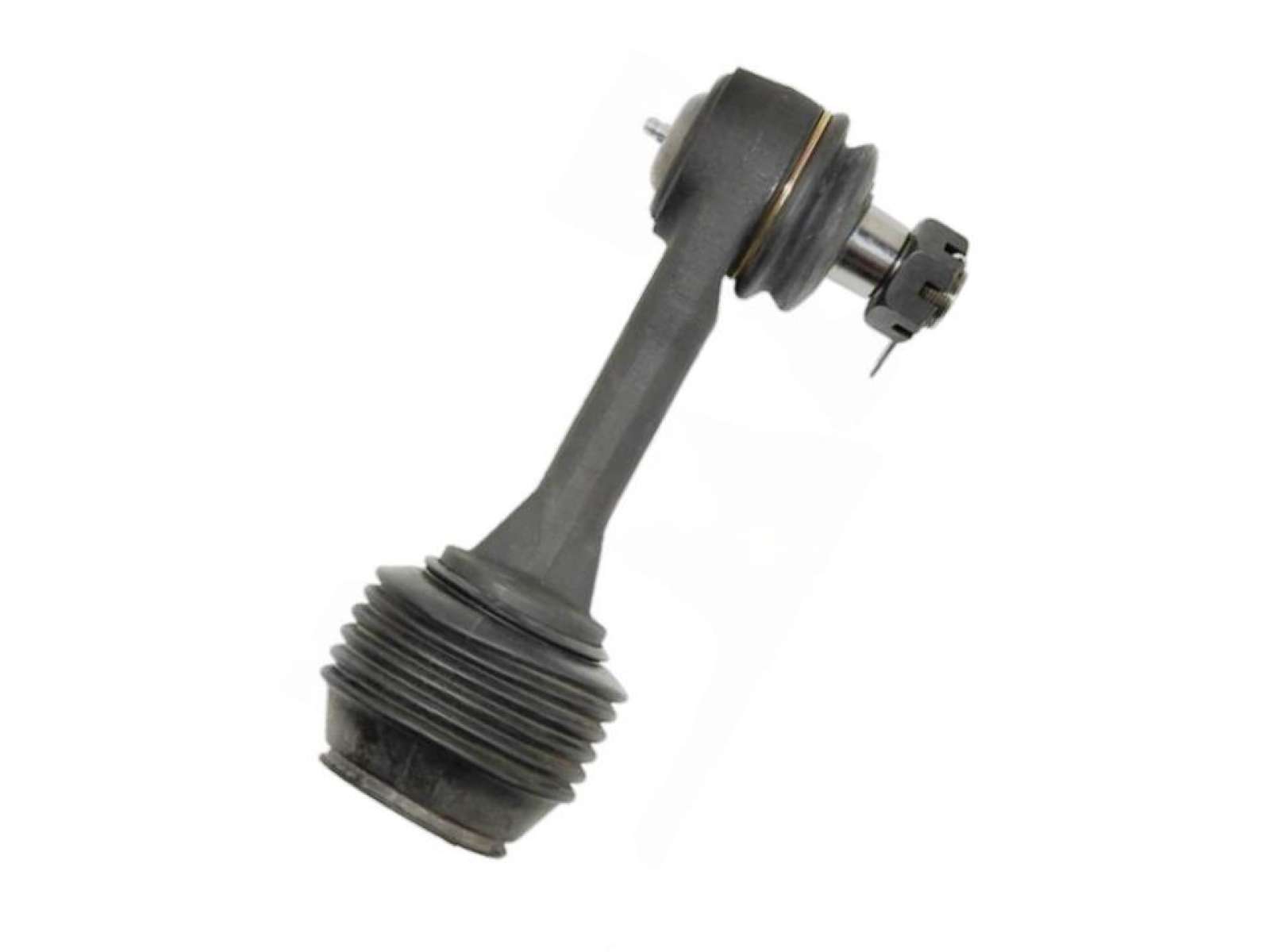

Tie rod end

Manitou part number: 53202101

Type of ball joint TY-RO
tie-rod end with fork end
Length ball joint L1 (mm)
200
Taper diameter D1 (mm)
26.5
Height of the tie-rod H1 (mm)
110
Thread type TA2
M24
Pitch (metric) Pm2 (mm)
1.5
Right-handed or left-handed thread RH/LH2
right-handed
Connection height H2 (mm)
85
Diameter D3 (mm)
20
Distance between fork ends T (mm)
26
Ball joint present KO-TA
Yes
Grease Nipple SMP
YES
