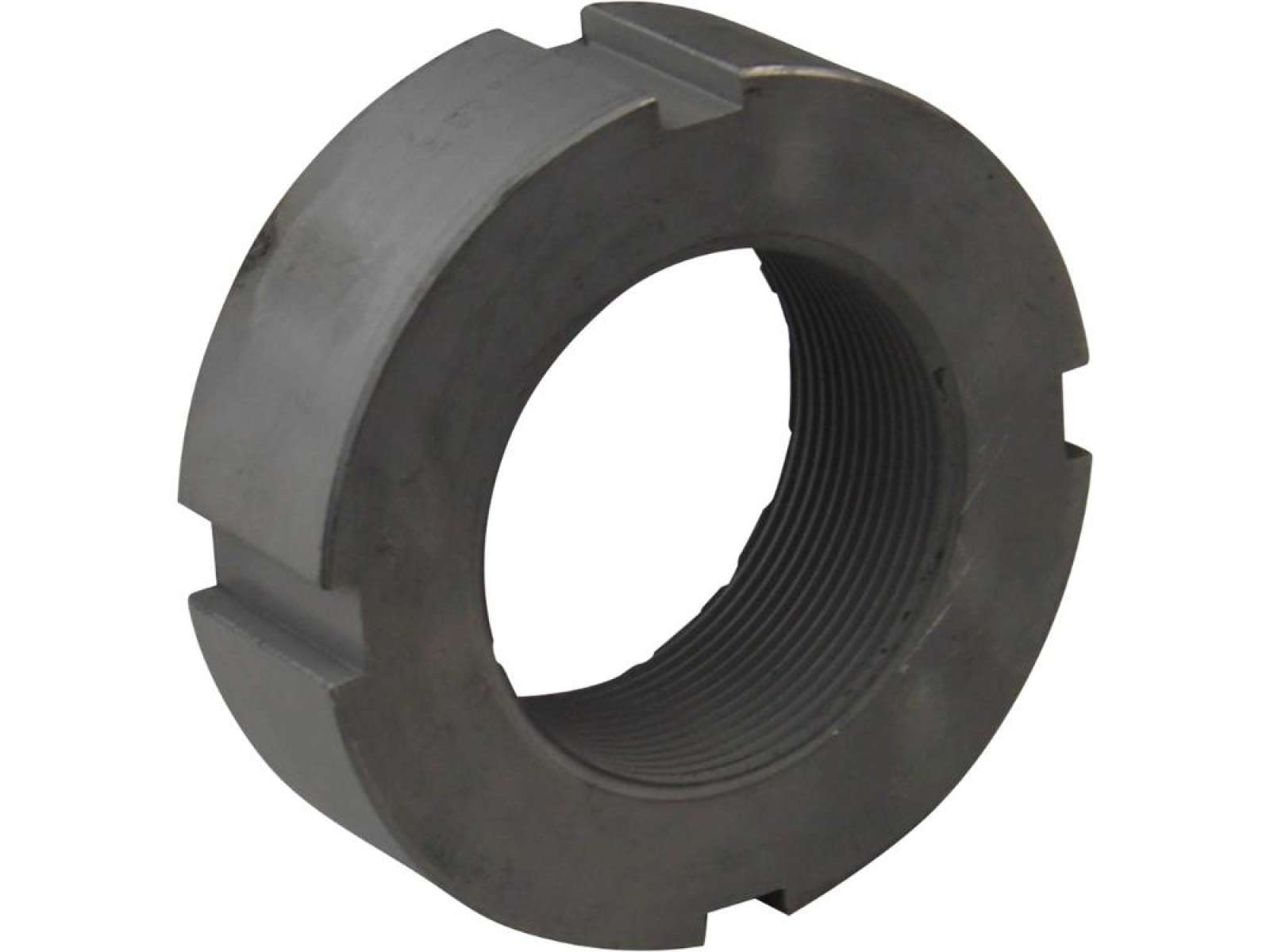

Nut 133570

  • Nut 133570
In Stock
Characteristics of spare parts
Article 133570
Originality Manitou OEM
Dimensions (LxWxH) Length: 0.065 M Width: 0.065 M Height: 0.02 M
Weight 0.33 Kg
All characteristics
Check with the manager

Гайка стопорна
Manitou part number: 133570

Inner diameter of the thread - metric D1-M (mm)
38.5
Internal thread size TA1
M40
Metric pitch TA1 (mm)
1.5
Maximum external diameter - metric D2-M (mm)
65
Overall height - metric H1-M (mm)
20.8
Distance between the slots - metric L2-M (mm)
59
Width of the slots - metric W1-M (mm)
7
Shape of the nut
SN04A
Number of slots
4
Type of slots
rectangular
Locking device present
NO
Direction of rotation of the thread TA1
right-handed
Unit of the thread
metric
Material
steel
