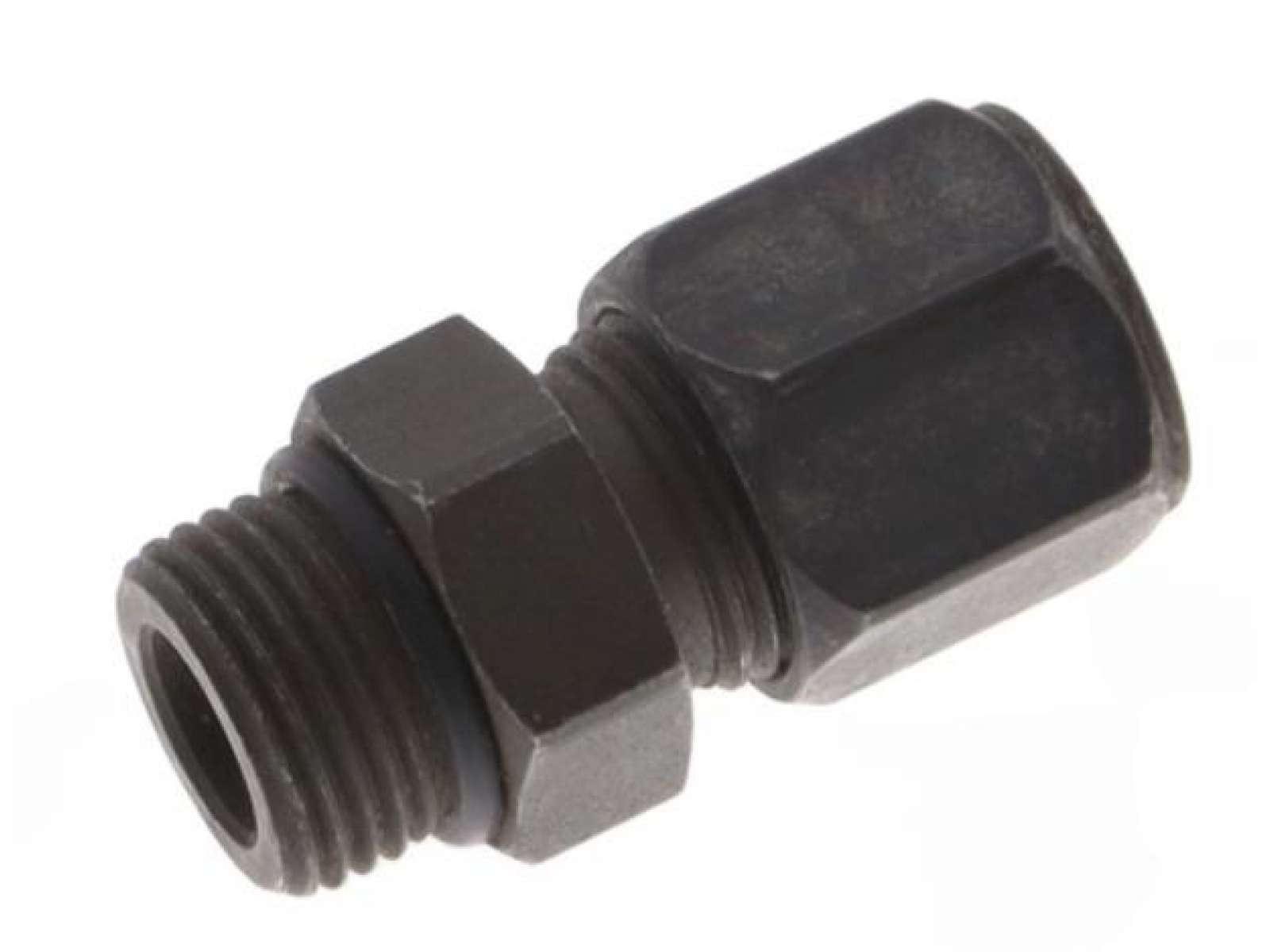

Fitting 564416

  • Fitting 564416
  • Fitting 564416
In Stock
Characteristics of spare parts
Article 564416
Originality Manitou OEM
Dimensions (LxWxH) Length: 0.125 M Width: 0.076 M Height: 0.034 M
Weight 0.092 Kg
All characteristics
Check with the manager

Fitting for hydro circuit

Manitou part number: 564416

Type
straight
Number of connections
2
Type of connection
outer thread
Biggest internal diameter D1 (mm)
15
Number of connection 1
1
Diameter connection 1 D2 (mm)
19.05
Thread size connection 1
3/4
Type of thread connection 1
UNF
Pitch inch connection 1
16
Right or left handed thread connection 1
right-handed
Type of sealing connection 1, with thread only
internal cone
Number of connection 2
1
Diameter connection 2 D3 (mm)
19.05
Thread size connection 2
3/4
Type of thread connection 2
UNF
Pitch inch connection 2
16
Right or left handed thread connection 2
right-handed
Type of sealing of connection 2, with thread only
without
Total length L1 (mm)
48.2
Total height H1 (mm)
22.22
Biggest external diameter D4 (mm)
19.05
Bracket present
NO
Nut present
YES
Tube sleeve present
YES
Rotating
NO
Filter present
NO
Material
steel
