Oil pressure sensor 750377

  • Oil pressure sensor 750377
  • Oil pressure sensor 750377
  • Oil pressure sensor 750377
  • Oil pressure sensor 750377
In Stock
Characteristics of spare parts
Article 750377
Originality Manitou OEM
Vehicle unit //Electrical system
Compatibility //Manitou MLT-X 625
Dimensions (LxWxH) Length: 0.056 m Width: 0.025 m Height: 0.025 m
Weight 0.07 Kg
All characteristics
Check with the manager

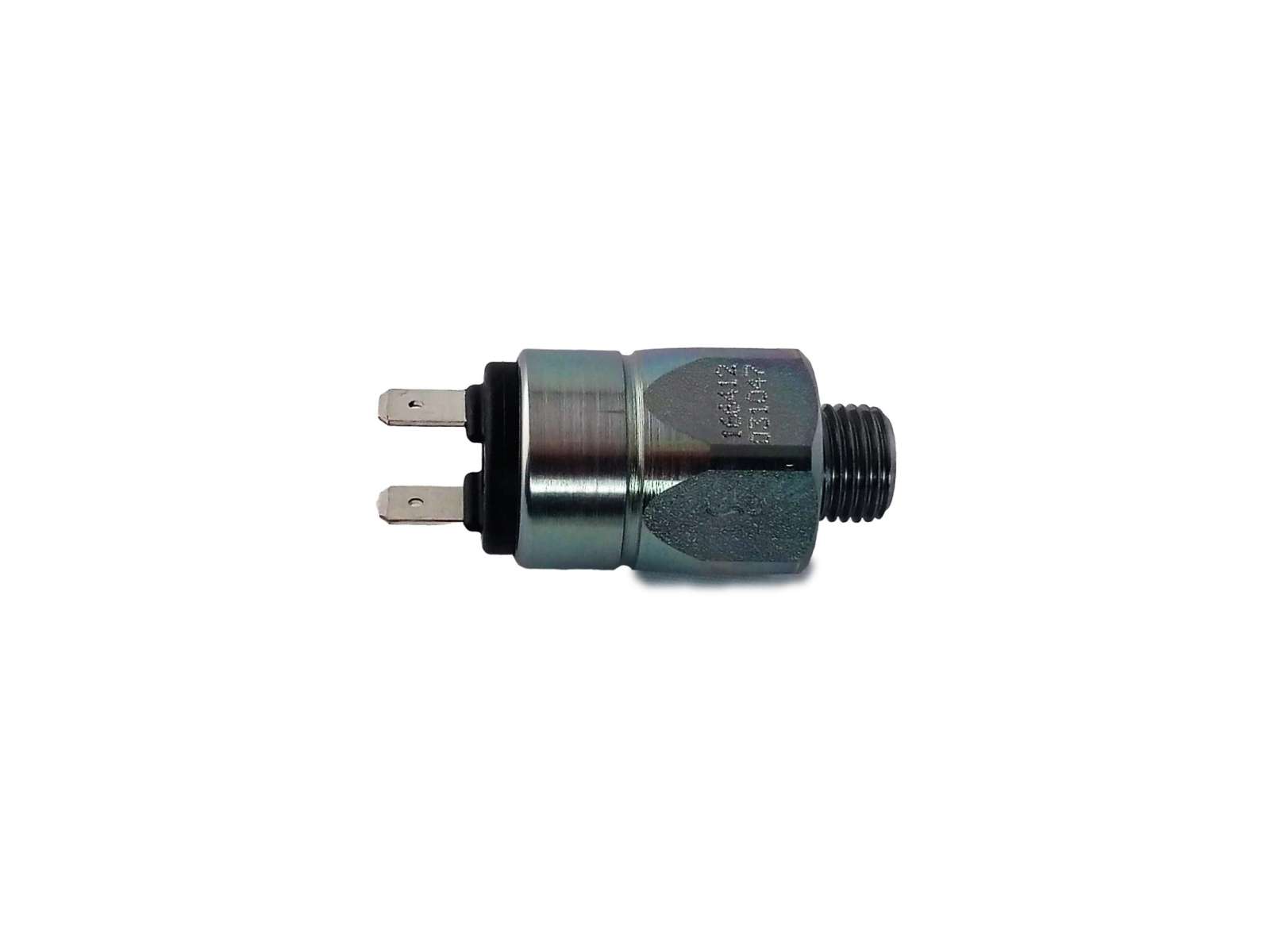

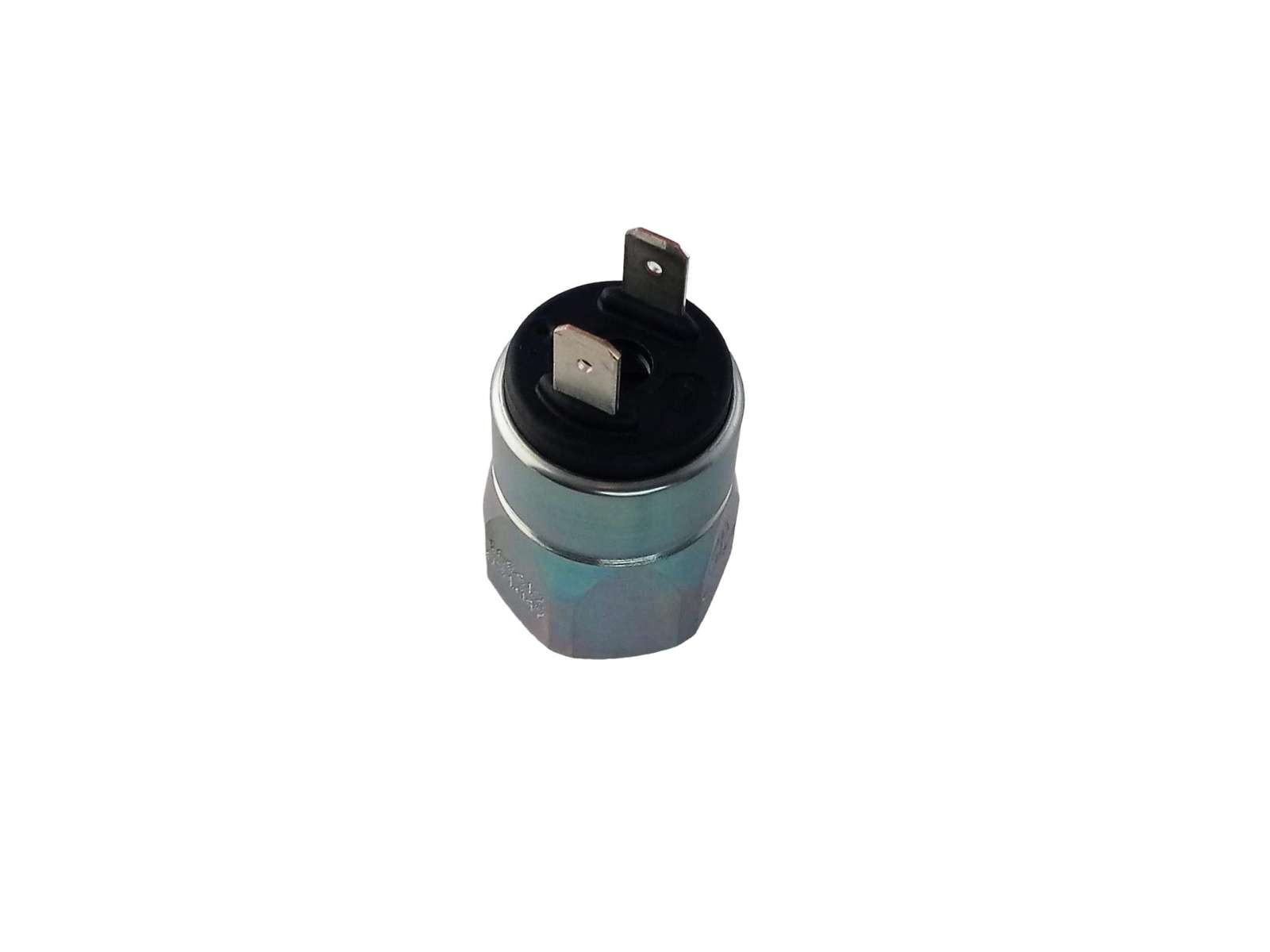

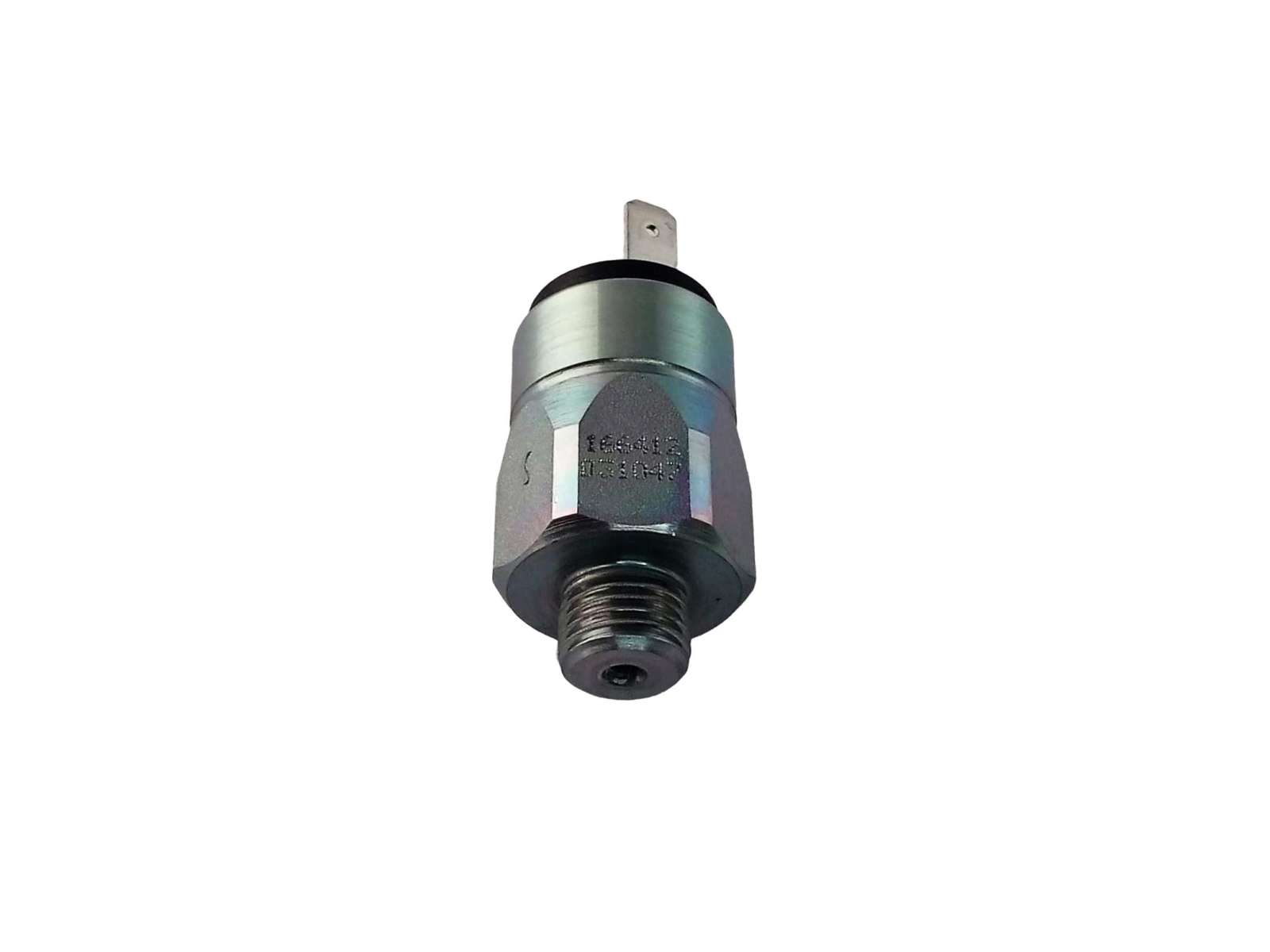

Oil pressure sensor

Manitou part number: 750377

Type of pressure switch
switch
Electronical
NO
Total Length L1 (mm)
55
Largest outer diameter D1 (mm)
24
Diameter D2 (mm)
3
Length thread L2 (mm)
7.5
Sort thread
outer thread
Thread size
1/4
Type of thread
BSP
Pitch imperial
19
Right or left handed thread
right-handed
Unit of the thread
imperial
Width across flats metric (mm)
24
Type of connection
blade connection
Number of blades
2
Preset pressure BAR (Bar)
14
Pressure adjustable
NO
Type of diaphragm
FPM
Type contact
normally closed
