Pressure sensor 740929

  • Pressure sensor 740929
  • Pressure sensor 740929
  • Pressure sensor 740929
Arrives
Characteristics of spare parts
Article 740929
Originality Manitou OEM
Dimensions (LxWxH) Length: 0.053 M Width: 0.025 M Height: 0.025 M
Weight 0.049 Kg
All characteristics
Check with the manager

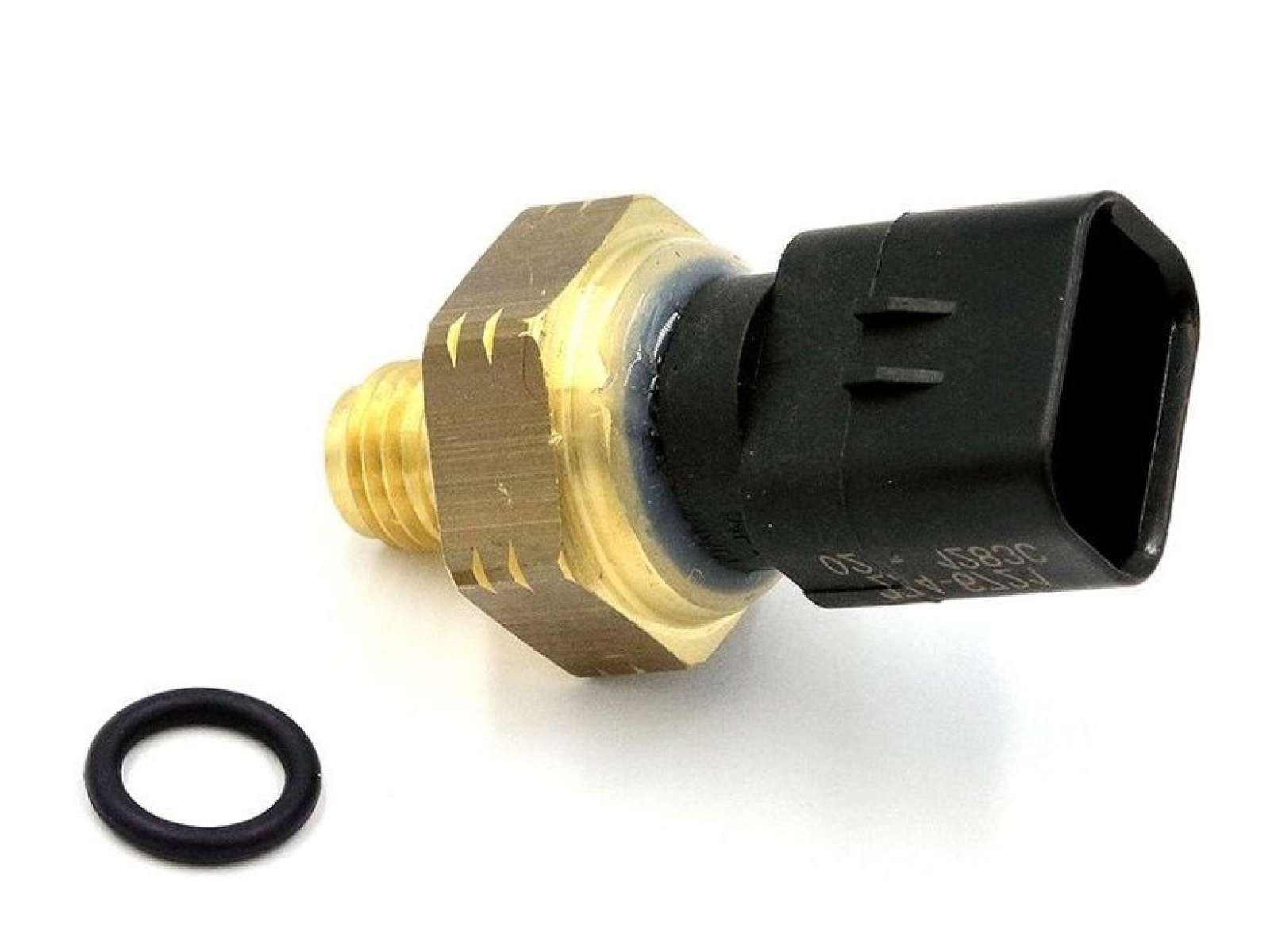

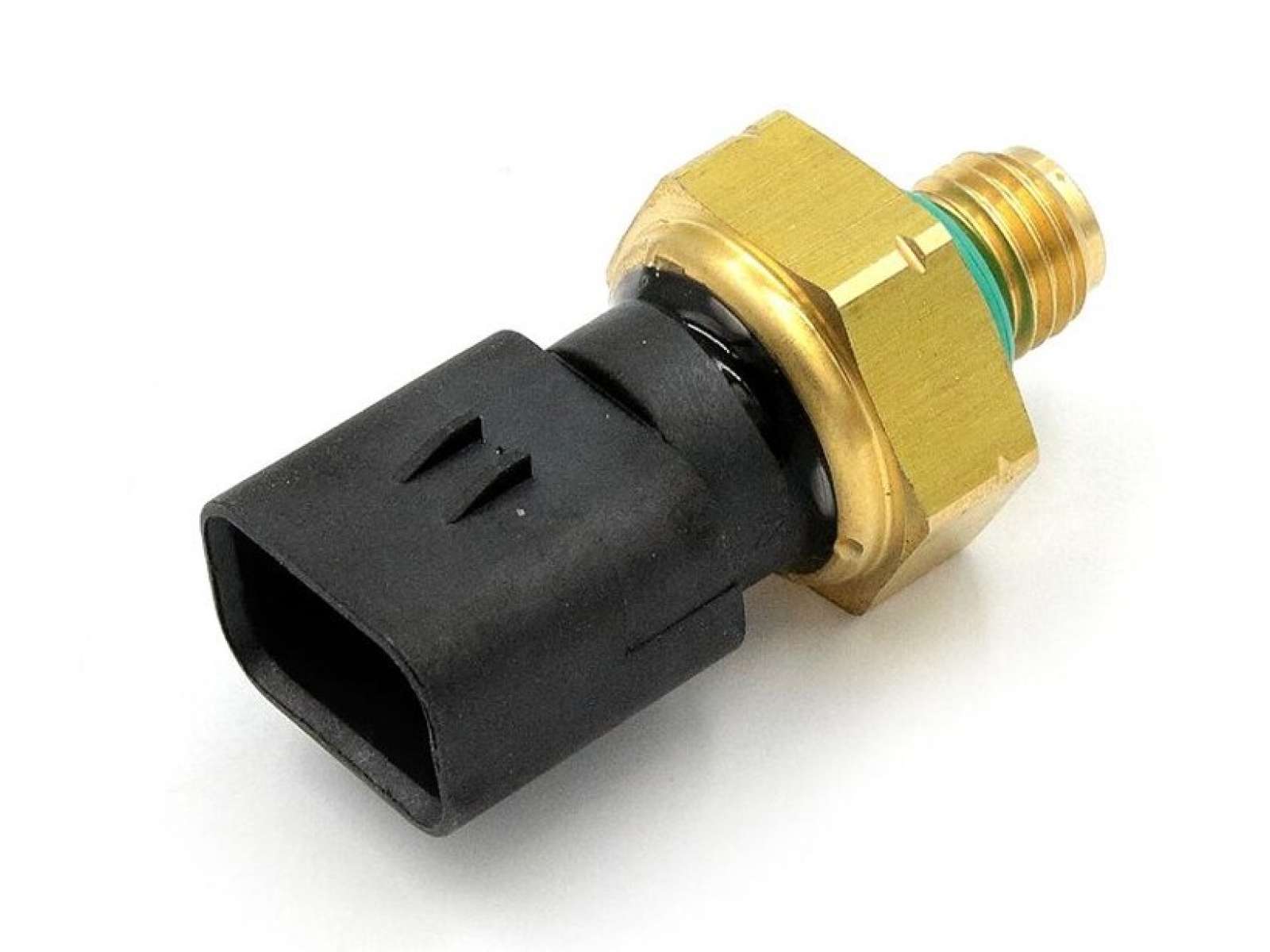

Oil pressure sensor

Manitou part number: 740929

Type of pressure switch
sensor
Electronical
YES
Total Length L1 (mm)
53
Largest outer diameter D1 (mm)
22.6
Diameter D2 (mm)
4
Length thread L2 (mm)
6
Sort thread
outer thread
Thread size
M12
Pitch metric (mm)
1.5
Right or left handed thread
right-handed
Unit of the thread
metric
Width across flats metric (mm)
25
Type of connection
connector
Number of connectors
1
Pressure adjustable
NO
Type contact
multiple,different or with signal
