Фітинг 487362

  • Фітинг 487362
  • Фітинг 487362
В наличии
Характеристики запчастей
Артикул 487362
Оригинальность Manitou OEM
Размеры (ДхШхВ) Length: 0.127 M Width: 0.08 M Height: 0.019 M
Вес 0.062 Kg
Все характеристики

  • 278.24 грн Цена с НДС:

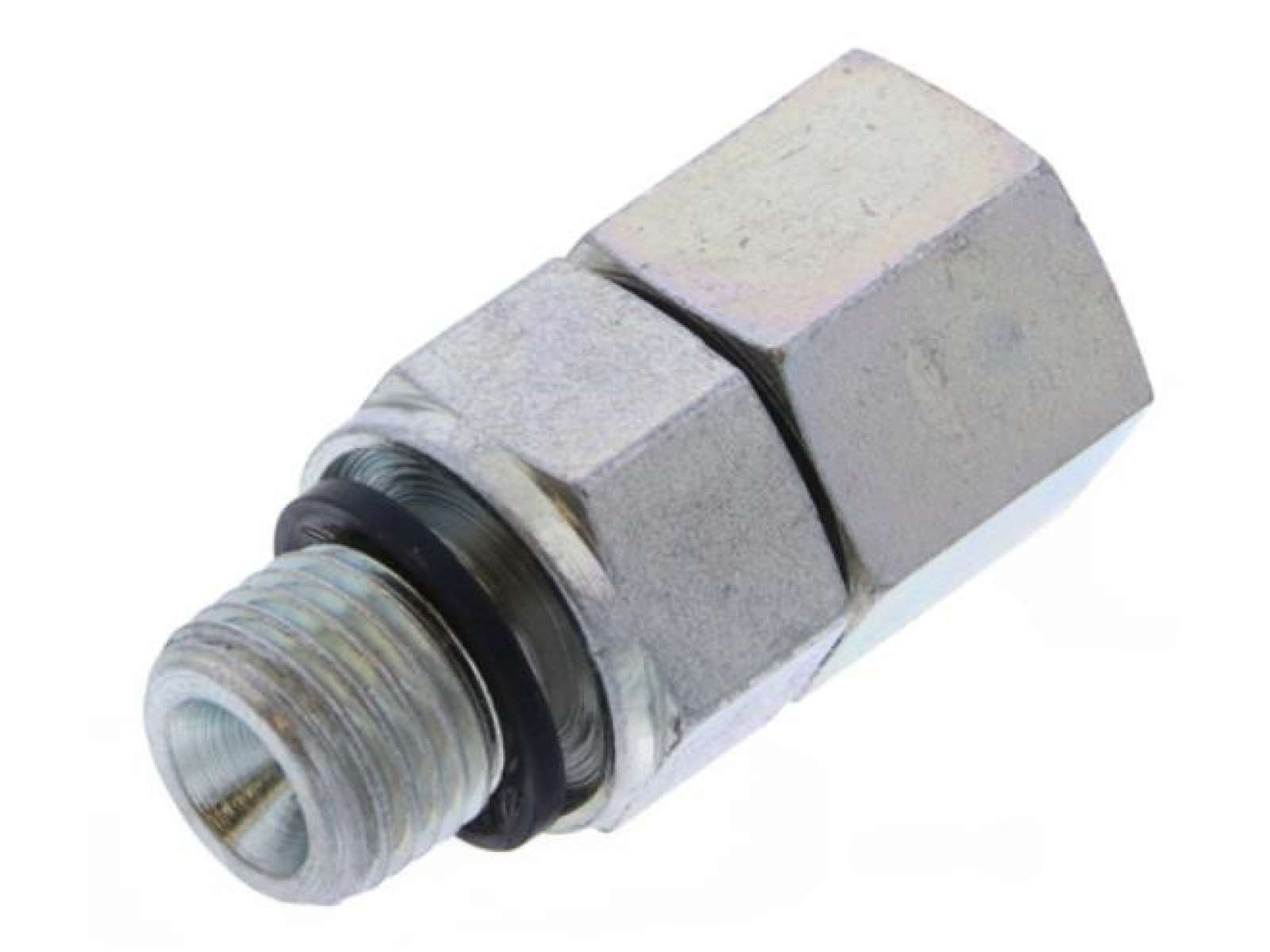

Фітинг для гідроконтура
Manitou part number: 487362

Type
straight
Number of connections
2
Type of connection
outer thread-inner thread
Biggest internal diameter D1 (mm)
4
Number of connection 1
1
Diameter connection 1 D2 (mm)
14.46
Thread size connection 1
5/8
Type of thread connection 1
UNF
Pitch inch connection 1
18
Right or left handed thread connection 1
right-handed
Type of sealing connection 1, with thread only
external cone with O-ring
Number of connection 2
1
Diameter connection 2 D3 (mm)
13.16
Thread size connection 2
1/4
Type of thread connection 2
BSP
Pitch inch connection 2
19
Right or left handed thread connection 2
right-handed
Type of sealing of connection 2, with thread only
internal cone
Total length L1 (mm)
41
Total height H1 (mm)
19
Biggest external diameter D4 (mm)
19
Bracket present
NO
Nut present
NO
Tube sleeve present
NO
Rotating
NO
Filter present
NO
Material
steel
